Travelator details

Description

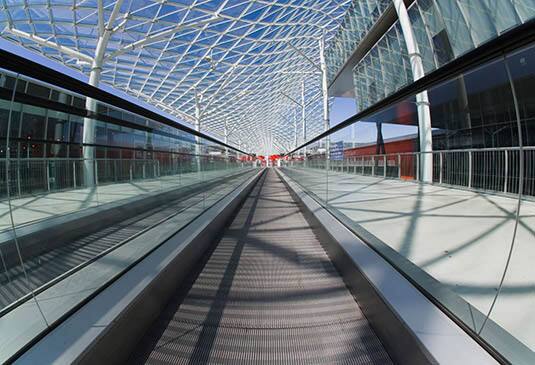

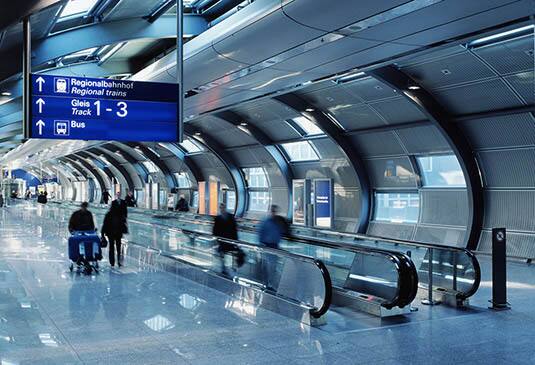

The KONE TransitMaster™ 165 travelator is a heavy-duty autowalk primarily targeted towards the infrastructure segment who need flat escalator solutions for demanding traffic conditions. This includes the need for an airport moving walkway, a flat escalator in a railway station, as well as a travelator in a stadium or transit center.

Specifications

  • Operational environment: indoor, semi-outdoor
  • Speed: 0.5, 0.65, 0.75 m/s;
  • Inclination: 0-6º
  • Pallet width: 1000, 1200, 1400 mm
  • Length: Up to 100m

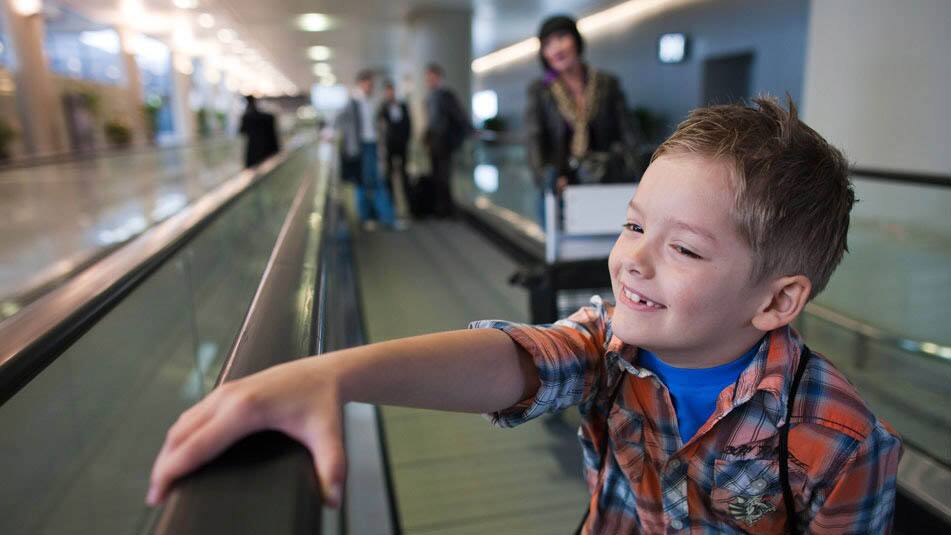

Travelator safety

  • Safety is the starting point for every KONE travelator. The TransitMaster™ 165 travelator conforms to all local and international safety codes.
  • We provide standard autowalk safety features including comb plate impact device switches and emergency stop buttons for passengers.

Tools and downloads

Contact us

Travelator options and highlights

Travelmaster 165

Travelator eco-efficiency

  • Eco-efficient operation can save energy by slowing down or stopping the autowalk when it is not in use or when traffic is low
  • Long lasting LED lighting on a flat escalator is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • Reduced autowalk speed of 0.4m/s saves energy depending on passenger traffic, e.g. an airport moving walkway
  • The lubrication-free step chain saves oil, reduces chain wear, and decreases fire risk for a moving walkway
Travelmaster 165

Travelator safety

In addition to the standard travelator safety features, we offer optional safety features including:

  • New autowalk traffic signalization solutions and colored step demarcations for extra visual guidance
  • Halogen-free, fire-resistant wiring
  • Seismic movement options
  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
Travelmaster 165

Travelator design

High quality travelator design for the best possible user experience:

  • Innovative and attractive travelator design lighting solutions that also improve passenger guidance and safety on moving walkways
  • A wide range of travelator design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Escalator and autowalk solutions

Product name
Type
Segment
Maximum rise
Speed
Inclination
24/7 Connected Services available
Energy-efficiency class
TravelMaster 110
EscalatorCommercial, retail, hotel, office, multi-use, stadium, medical
13 m
0.5 m/s30°, 35°
YesA+++
TravelMaster 115
Inclined autowalkCommercial, retail, hotel, office, multi-use, stadium, medical
7 m
0.5 m/s
10°, 12°
Yes
A+++
TransitMaster 120
EscalatorInfrastructure
20 m
0.5, 0.65, 0.75 m/s27.3°, 30°, 35°Yes
A+++
TransitMaster 140
EscalatorInfrastructure
35 m
0.5, 0.65, 0.75 m/s27.3°, 30°YesA+++
TransitMaster 165
Horizontal autowalkInfrastructure
100 m length
0.5, 0.65, 0.75 m/s
0-6°
YesA+++

Further information about KONE premium escalators with TransVario drive (TravelMaster 110T, TransitMaster 120T, TransitMaster 140T) available here.
